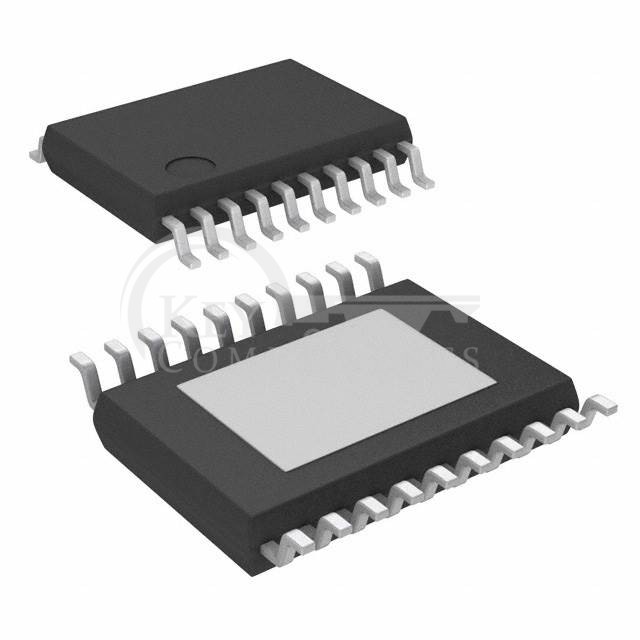

LM5122QMH/NOPB
| Manufacturer Part | LM5122QMH/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG CTRLR MULT TOP 20HTSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Transistor Driver |
| Function: | Step-Up |
| Output Configuration: | Positive |
| Topology: | Boost |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 65V |
| Frequency - Switching: | Up to 1MHz |
| Duty Cycle (Max): | 100% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | Yes |
| Serial Interfaces: | - |
| Control Features: | Frequency Control, Soft Start |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-HTSSOP |
