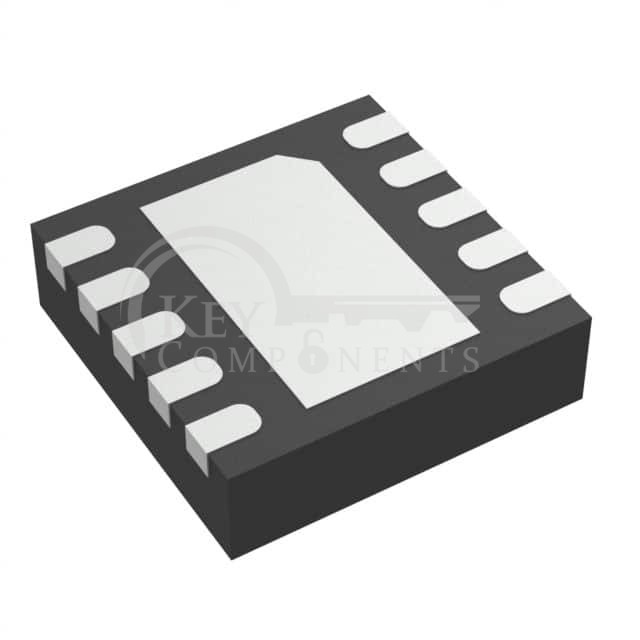

LM5108DRCR
| Manufacturer Part | LM5108DRCR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC GATE DRVR PWR MGMT |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Independent |
| Number of Drivers: | 2 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 5.5V ~ 16V |
| Logic Voltage - VIL, VIH: | - |
| Current - Peak Output (Source, Sink): | 1.6A, 2.6A |
| Input Type: | CMOS/TTL |
| High Side Voltage - Max (Bootstrap): | - |
| Rise / Fall Time (Typ): | 11ns, 8ns |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-VFDFN Exposed Pad |
| Supplier Device Package: | 10-VSON (3x3) |
