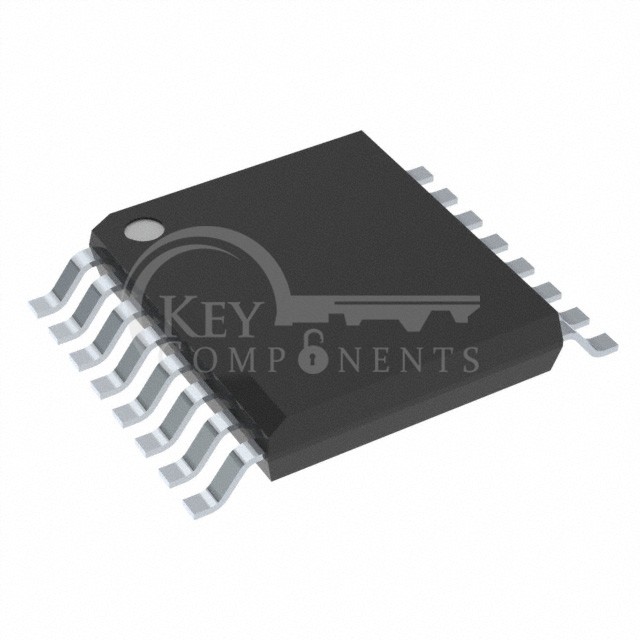

ISO7742QDBQRQ1
| Manufacturer Part | ISO7742QDBQRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | DGTL ISO 2500VRMS 4CH GP 16SSOP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Capacitive Coupling |
| Type: | General Purpose |
| Isolated Power: | No |
| Number of Channels: | 4 |
| Inputs - Side 1/Side 2: | 2/2 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 85kV/µs |
| Data Rate: | 100Mbps |
| Propagation Delay tpLH / tpHL (Max): | 16ns, 16ns |
| Pulse Width Distortion (Max): | 4.9ns |
| Rise / Fall Time (Typ): | 2.4ns, 2.4ns |
| Voltage - Supply: | 2.25V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SSOP |
