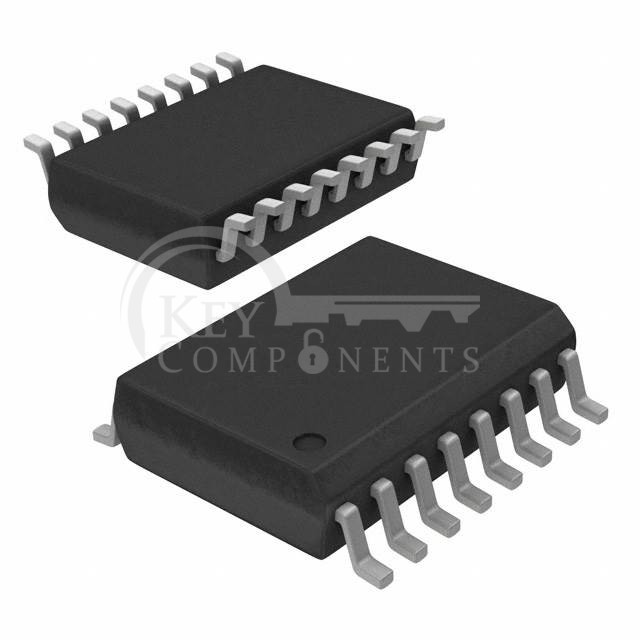

ISO3080DW
| Manufacturer Part | ISO3080DW |
|---|---|
| Manufacturer | Texas Instruments |
| Description | ISO RS485/422 0.2MBPS 2.5KVRMS |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Capacitive Coupling |
| Type: | RS422, RS485 |
| Isolated Power: | No |
| Number of Channels: | 3 |
| Inputs - Side 1/Side 2: | 2/1 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 200kbps |
| Propagation Delay tpLH / tpHL (Max): | - |
| Pulse Width Distortion (Max): | - |
| Rise / Fall Time (Typ): | - |
| Voltage - Supply: | 3.15V ~ 5.5V, 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
