DS15BR400TSQ
| Manufacturer Part | DS15BR400TSQ |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REDRIVER LVDS 4CH 32WQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Buffer, ReDriver |
| Applications: | LVDS |
| Input: | CML, LVDS, LVPECL |
| Output: | LVDS |
| Data Rate (Max): | 2Gbps |
| Number of Channels: | 4 |
| Delay Time: | 1.0ns |
| Signal Conditioning: | Output Pre-Emphasis |
| Capacitance - Input: | 3 pF |
| Voltage - Supply: | 3V ~ 3.6V |
| Current - Supply: | 175mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |

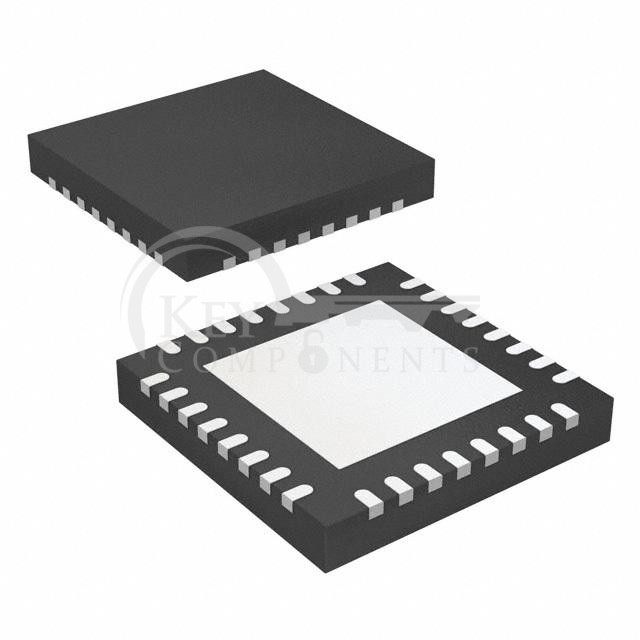

| Package / Case: | 32-WFQFN Exposed Pad |
| Supplier Device Package: | 32-WQFN (5x5) |
