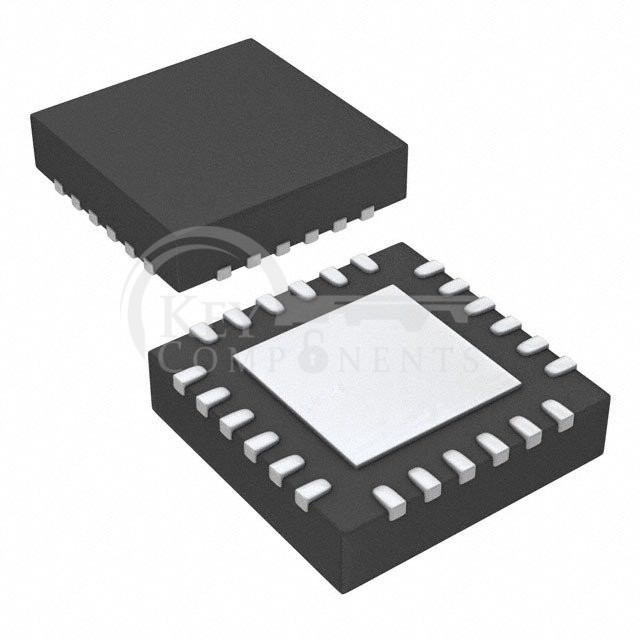

DS100BR210SQ/NOPB
| Manufacturer Part | DS100BR210SQ/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REDRIVER SATA 2CH 24WQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Buffer, ReDriver |
| Applications: | SATA |
| Input: | CML |
| Output: | CML |
| Data Rate (Max): | 10.3Gbps |
| Number of Channels: | 2 |
| Delay Time: | 230ps |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | 10 pF |
| Voltage - Supply: | 2.375V ~ 3.6V |
| Current - Supply: | 50mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-WFQFN Exposed Pad |
| Supplier Device Package: | 24-WQFN (4x4) |
