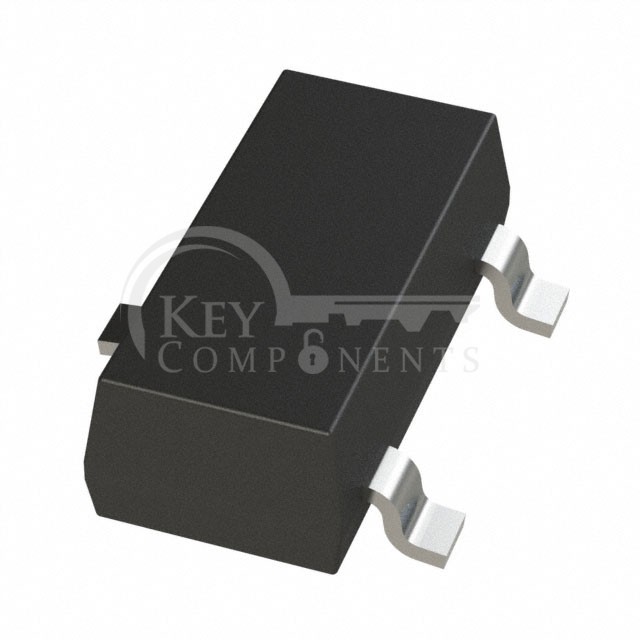

DRV5055Z4QDBZR
| Manufacturer Part | DRV5055Z4QDBZR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | RATIOMETRIC LINEAR HALL EFFECT S |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Hall Effect |
| Axis: | Single |
| Output Type: | Analog Voltage |
| Sensing Range: | ±169mT |
| Voltage - Supply: | 3V ~ 3.63V, 4.5V ~ 5.5V |
| Current - Supply (Max): | 10mA |
| Current - Output (Max): | 1mA |
| Resolution: | - |
| Bandwidth: | 20kHz |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Features: | Temperature Compensated |
| Supplier Device Package: | SOT-23-3 |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
