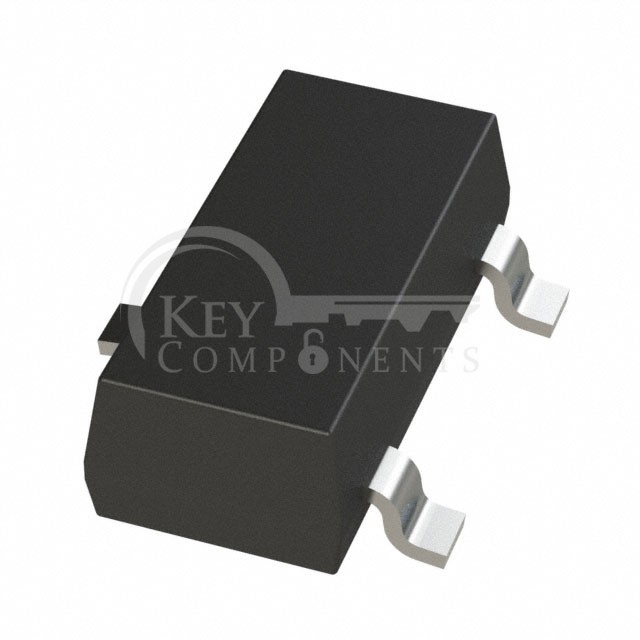

DRV5015A2EDBZRQ1
| Manufacturer Part | DRV5015A2EDBZRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | MAGNETIC SWITCH LATCH SOT23-3 |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Latch |
| Technology: | Hall Effect |
| Polarization: | North Pole, South Pole |
| Sensing Range: | 3.7mT Trip, -3.7mT Release |
| Test Condition: | -40°C ~ 125°C |
| Voltage - Supply: | 2.5V ~ 5.5V |
| Current - Supply (Max): | 2.8mA |
| Current - Output (Max): | 30mA |
| Output Type: | Open Drain |
| Features: | Temperature Compensated |
| Operating Temperature: | -40°C ~ 150°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SOT-23-3 |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
