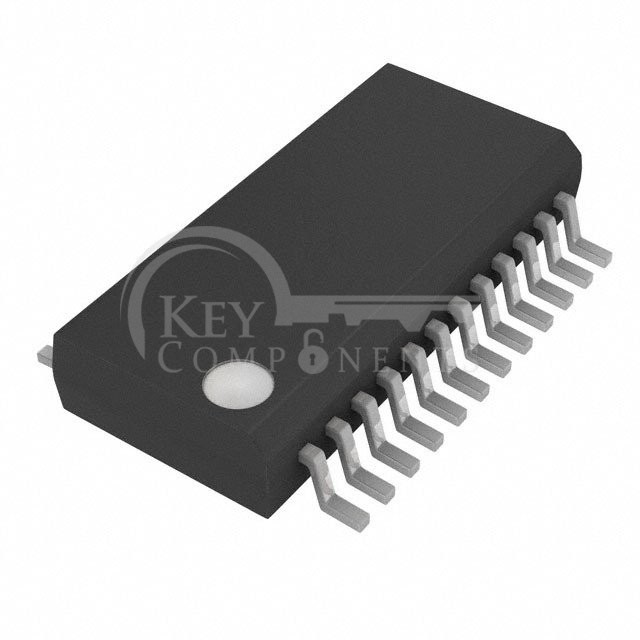

CDC5801DBQR
| Manufacturer Part | CDC5801DBQR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC CLOCK MLT/DIV LOW JTTR 24QSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | PLL Multiplier/Divider |
| PLL: | Yes with Bypass |
| Input: | LVCMOS, LVTTL |
| Output: | LVDS, LVPECL, LVTTL |
| Number of Circuits: | 1 |
| Ratio - Input:Output: | 1:1 |
| Differential - Input:Output: | No/Yes |
| Frequency - Max: | 500MHz |
| Divider/Multiplier: | Yes/Yes |
| Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 24-SSOP |
