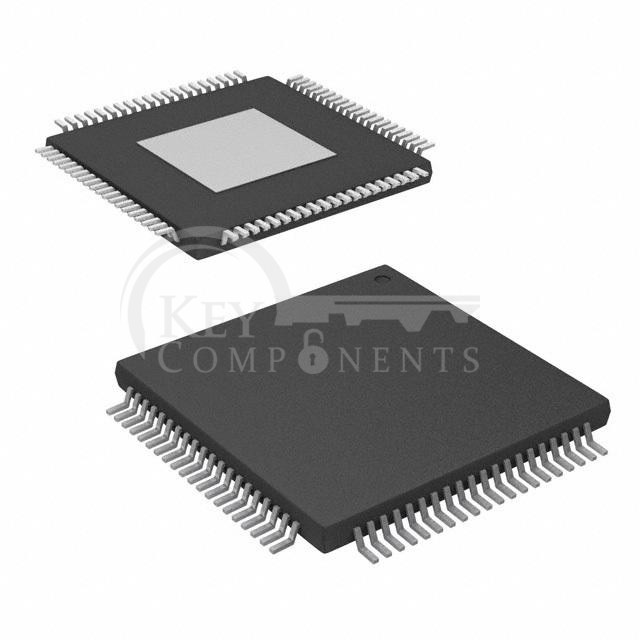

ADS5474IPFP
| Manufacturer Part | ADS5474IPFP |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC ADC 14BIT PIPELINED 80HTQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 14 |
| Sampling Rate (Per Second): | 400M |
| Number of Inputs: | 1 |
| Input Type: | Differential |
| Data Interface: | Parallel |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 1 |
| Architecture: | Pipelined |
| Reference Type: | Internal |
| Voltage - Supply, Analog: | 3.1V ~ 3.6V, 5V |
| Voltage - Supply, Digital: | 3V ~ 3.6V |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 80-TQFP Exposed Pad |
| Supplier Device Package: | 80-HTQFP (12x12) |
| Mounting Type: | Surface Mount |
