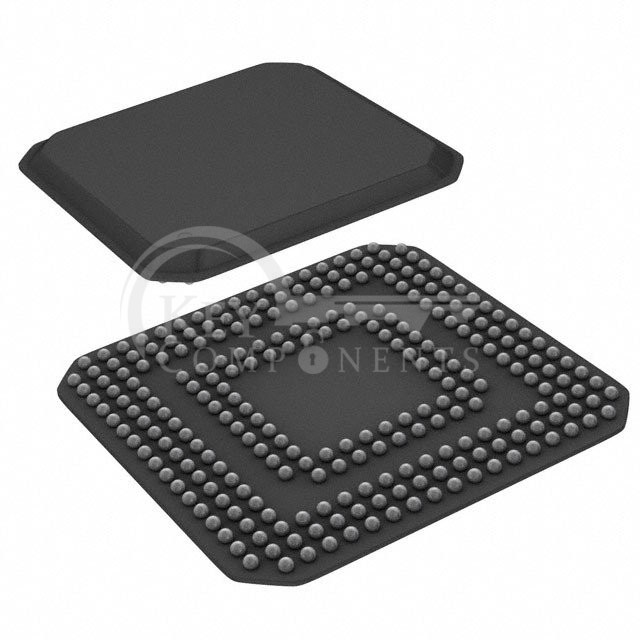

ADS5120CZHK
| Manufacturer Part | ADS5120CZHK |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC ADC 10BIT PIPELINED 257BGA |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 10 |
| Sampling Rate (Per Second): | 40M |
| Number of Inputs: | 8 |
| Input Type: | Differential, Single Ended |
| Data Interface: | Parallel |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 8 |
| Architecture: | Pipelined |
| Reference Type: | External, Internal |
| Voltage - Supply, Analog: | 1.65V ~ 2V |
| Voltage - Supply, Digital: | 1.65V ~ 2V |
| Features: | Simultaneous Sampling |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 257-LFBGA |
| Supplier Device Package: | 257-BGA MICROSTAR (16x16) |
| Mounting Type: | Surface Mount |
