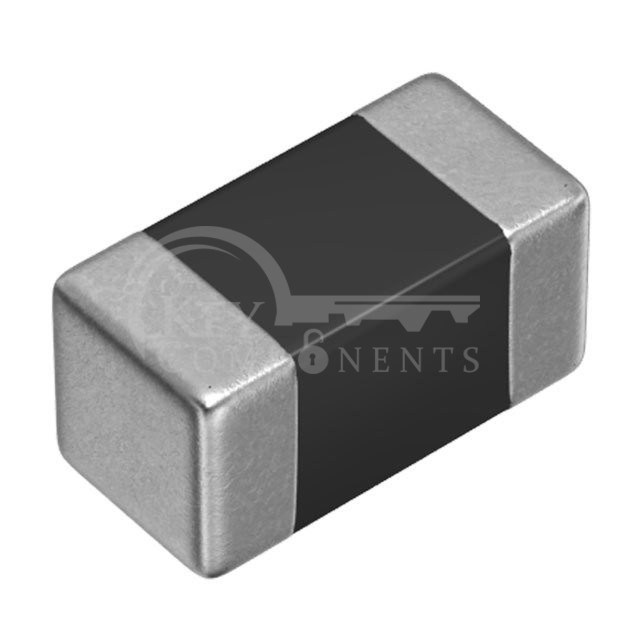

MLF1005LR56KT000

MLF1005LR56KT000

Manufacturer Part MLF1005LR56KT000
Manufacturer TDK Corporation
Description FIXED IND 560NH 45MA 470MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Multilayer
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):45 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):470mOhm Max
Q @ Freq:25 @ 10MHz
Frequency - Self Resonant:170MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.022" (0.55mm)
