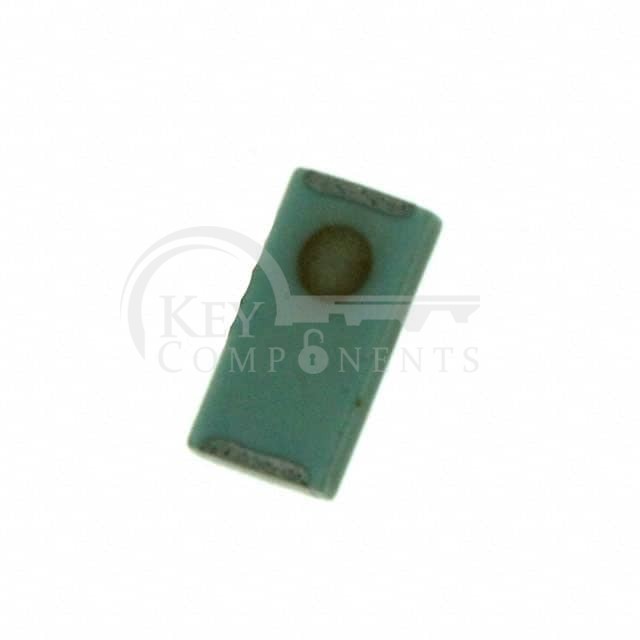

AH316M157501-T
| Manufacturer Part | AH316M157501-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| RF Family/Standard: | Navigation |
| Frequency Group: | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band): | 1.575GHz |
| Frequency Range: | 1.574GHz ~ 1.576GHz |
| Antenna Type: | Chip |
| Number of Bands: | 1 |
| VSWR: | 3 |
| Return Loss: | - |
| Gain: | 2.4dBi, -0.6dBic |
| Power - Max: | - |
| Features: | - |
| Termination: | Solder |
| Ingress Protection: | - |
| Mounting Type: | Surface Mount |
| Height (Max): | 0.020" (0.50mm) |
| Applications: | GPS |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
