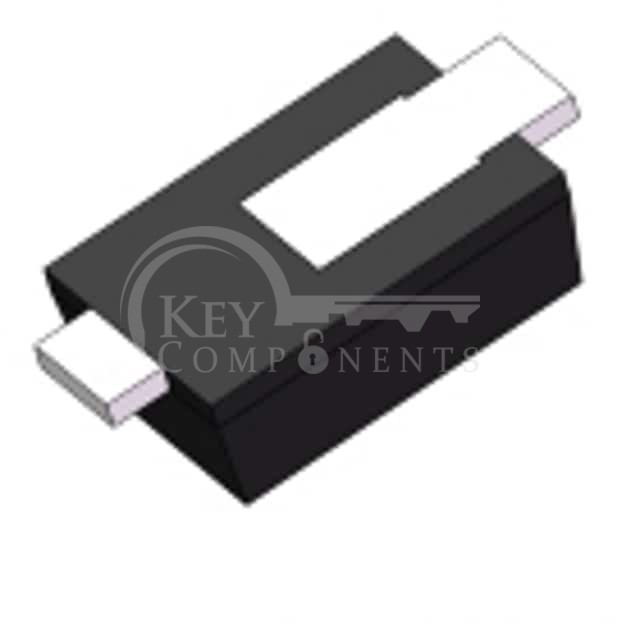

BZD27C56P
| Manufacturer Part | BZD27C56P |
|---|---|
| Manufacturer | Taiwan Semiconductor Corporation |
| Description | DIODE ZENER 56V 1W SUB SMA |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Voltage - Zener (Nom) (Vz): | 56 V |
| Tolerance: | ±7.14% |
| Power - Max: | 1 W |
| Impedance (Max) (Zzt): | 60 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 43 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 200 mA |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-219AB |
| Supplier Device Package: | Sub SMA |
