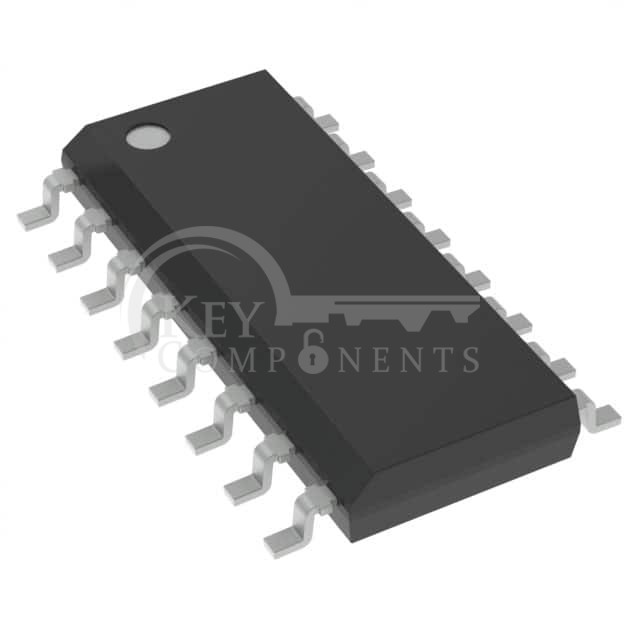

VIPER26HDTR
| Manufacturer Part | VIPER26HDTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFFLINE SWITCH FLYBACK 16SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Either |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 800V |
| Topology: | Flyback |
| Voltage - Start Up: | 13 V |
| Voltage - Supply (Vcc/Vdd): | 11.5V ~ 23.5V |
| Duty Cycle: | 70% |
| Frequency - Switching: | 115kHz |
| Power (Watts): | 20 W |
| Fault Protection: | Current Limiting, Over Temperature |
| Control Features: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SO |
| Mounting Type: | Surface Mount |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
