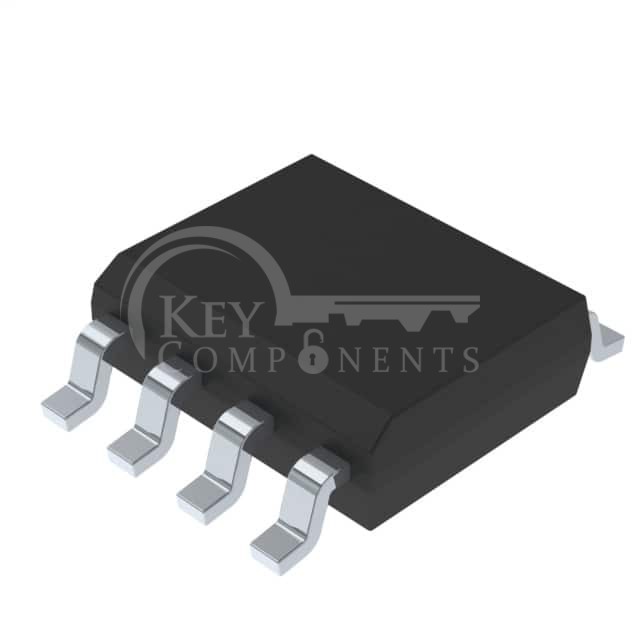

TSH690ID
| Manufacturer Part | TSH690ID |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC RF AMP GSM 40MHZ-1GHZ 8SOIC |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Frequency: | 40MHz ~ 1GHz |
| P1dB: | 8dBm ~ 12dBm |
| Gain: | 20dB ~ 30dB |
| Noise Figure: | 4.5dB |
| RF Type: | GSM, TDMA, ISM Cordless Phones, AMR |
| Voltage - Supply: | 1.5V ~ 5V |
| Current - Supply: | 33mA ~ 53mA |
| Test Frequency: | 450MHz |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
