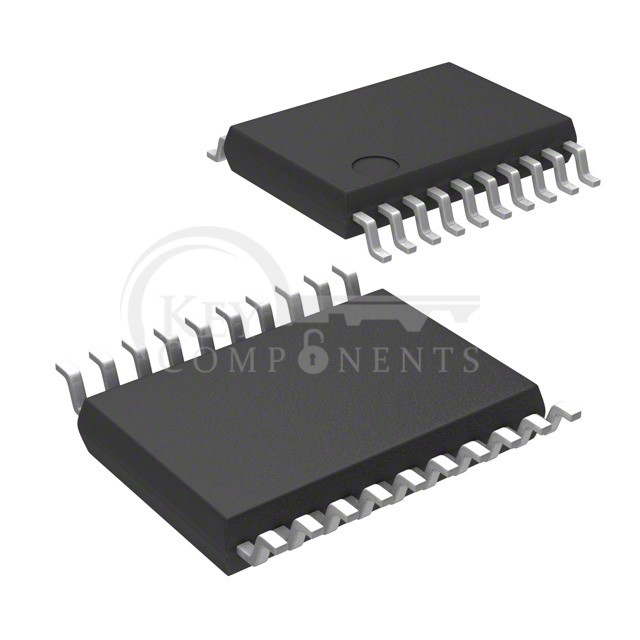

STM8S103F3P3TR
| Manufacturer Part | STM8S103F3P3TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MCU 8BIT 8KB FLASH 20TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | STM8 |
| Core Size: | 8-Bit |
| Speed: | 16MHz |
| Connectivity: | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O: | 16 |
| Program Memory Size: | 8KB (8K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 640 x 8 |
| RAM Size: | 1K x 8 |
| Voltage - Supply (Vcc/Vdd): | 2.95V ~ 5.5V |
| Data Converters: | A/D 5x10b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TSSOP |
