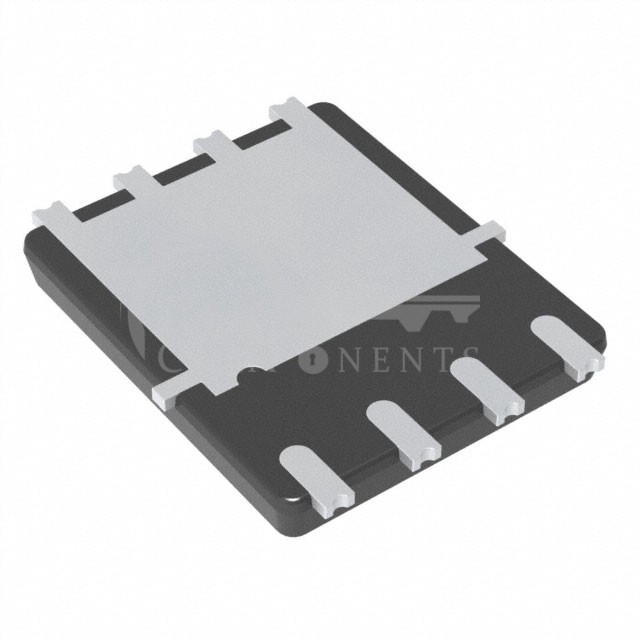

STLD125N4F6AG

Manufacturer Part	STLD125N4F6AG
Manufacturer	STMicroelectronics
Description	MOSFET N-CH 40V 120A POWERFLAT
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6.5V, 10V
Rds On (Max) @ Id, Vgs:	3mOhm @ 75A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	91 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5600 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	130W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (5x6) Dual Side
Package / Case:	8-PowerWDFN
