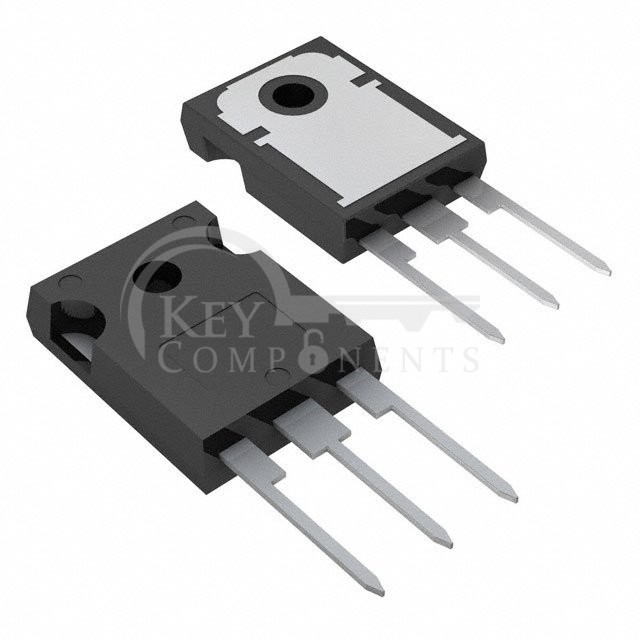

STGWT20H65FB

Manufacturer Part	STGWT20H65FB
Manufacturer	STMicroelectronics
Description	IGBT 650V 40A 168W TO3P
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	80 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 20A
Power - Max:	168 W
Switching Energy:	77µJ (on), 170µJ (off)
Input Type:	Standard
Gate Charge:	120 nC
Td (on/off) @ 25°C:	30ns/139ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3, SC-65-3
Supplier Device Package:	TO-3P
