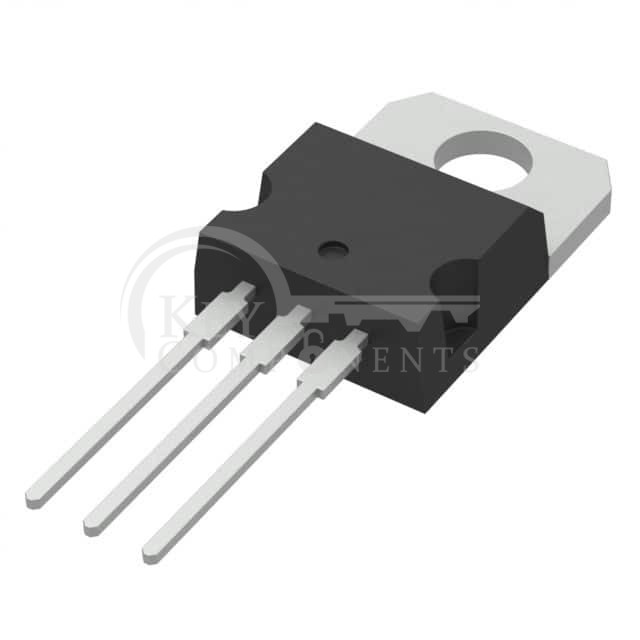

STGP5H60DF

Manufacturer Part	STGP5H60DF
Manufacturer	STMicroelectronics
Description	TRENCH GATE FIELD-STOP IGBT, H S
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	20 A
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 5A
Power - Max:	88 W
Switching Energy:	56µJ (on), 78.5µJ (off)
Input Type:	Standard
Gate Charge:	43 nC
Td (on/off) @ 25°C:	30ns/140ns
Test Condition:	400V, 5A, 47Ohm, 15V
Reverse Recovery Time (trr):	134.5 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220
