STGF7H60DF

STGF7H60DF

Manufacturer Part STGF7H60DF
Manufacturer STMicroelectronics

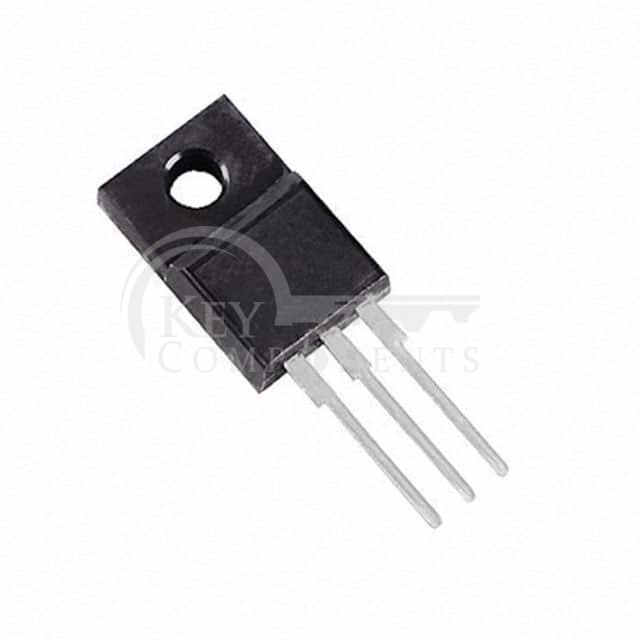

Description IGBT 600V 14A 24W TO-220FP
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):14 A
Current - Collector Pulsed (Icm):28 A
Vce(on) (Max) @ Vge, Ic:1.95V @ 15V, 7A
Power - Max:24 W
Switching Energy:99µJ (on), 100µJ (off)
Input Type:Standard
Gate Charge:46 nC
Td (on/off) @ 25°C:30ns/160ns
Test Condition:400V, 7A, 47Ohm, 15V
Reverse Recovery Time (trr):136 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
