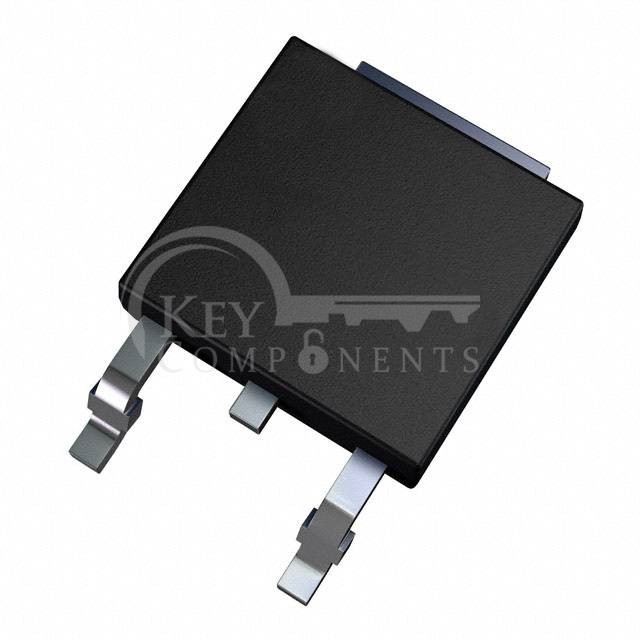

STGD4M65DF2

Manufacturer Part	STGD4M65DF2
Manufacturer	STMicroelectronics
Description	TRENCH GATE FIELD-STOP IGBT, M S
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	8 A
Current - Collector Pulsed (Icm):	16 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 4A
Power - Max:	68 W
Switching Energy:	40µJ (on), 136µJ (off)
Input Type:	Standard
Gate Charge:	15.2 nC
Td (on/off) @ 25°C:	12ns/86ns
Test Condition:	400V, 4A, 47Ohm, 15V
Reverse Recovery Time (trr):	133 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	DPAK
