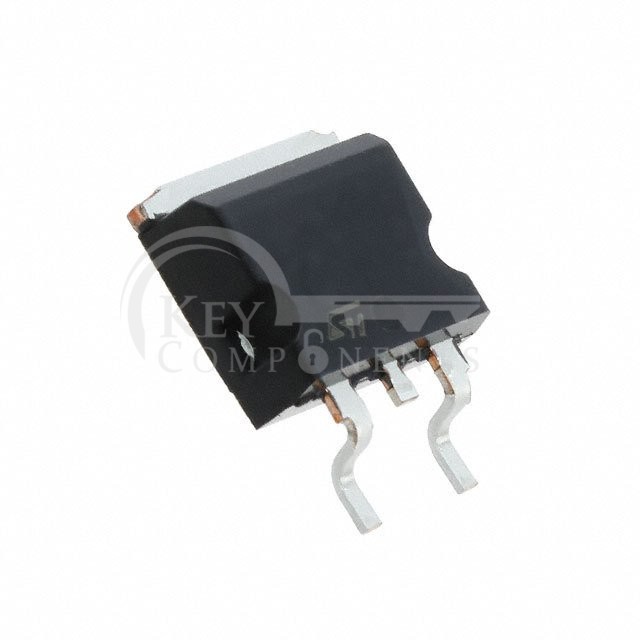

STGB35N35LZT4

Manufacturer Part	STGB35N35LZT4
Manufacturer	STMicroelectronics
Description	IGBT 345V 40A 176W D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	345 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	80 A
Vce(on) (Max) @ Vge, Ic:	1.7V @ 4.5V, 15A
Power - Max:	176 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	49 nC
Td (on/off) @ 25°C:	1.1µs/26.5µs
Test Condition:	300V, 15A, 5V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D²PAK (TO-263)
