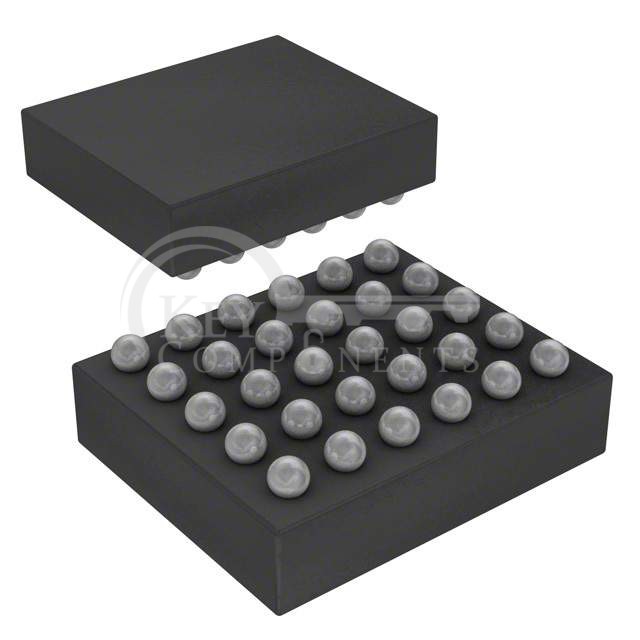

STG3820BJR
| Manufacturer Part | STG3820BJR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH QUAD DPDT 30FLIPCHIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | DPDT |
| Multiplexer/Demultiplexer Circuit: | 2:2 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 5.8Ohm |
| Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 15ns, 13ns |
| -3db Bandwidth: | 800MHz |
| Charge Injection: | 6.4pC |
| Channel Capacitance (CS(off), CD(off)): | 2pF |
| Current - Leakage (IS(off)) (Max): | 20nA |
| Crosstalk: | -78dB @ 1MHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 30-WFBGA, FCBGA |
| Supplier Device Package: | FlipChip 30 |
