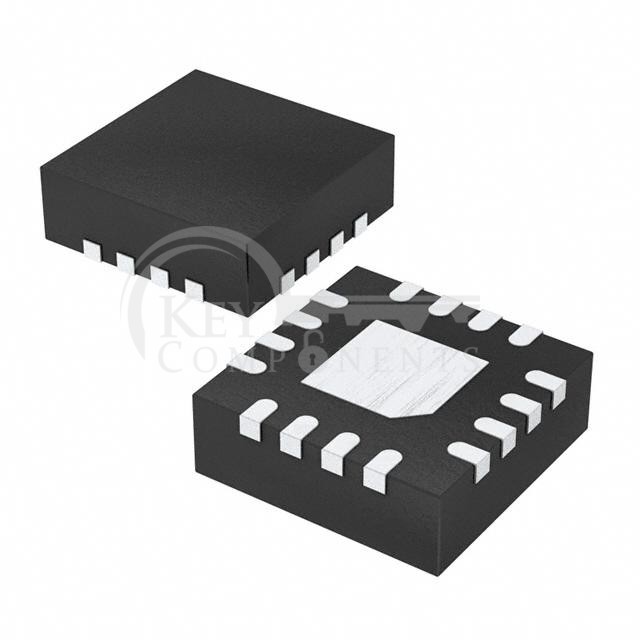

STG3684QTR
| Manufacturer Part | STG3684QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH DUAL SPDT 16QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 500mOhm |
| Channel-to-Channel Matching (ΔRon): | 60mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 50ns, 30ns |
| -3db Bandwidth: | 50MHz |
| Charge Injection: | 35pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF |
| Current - Leakage (IS(off)) (Max): | 10nA |
| Crosstalk: | -54dB @ 100kHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-VFQFN Exposed Pad |
| Supplier Device Package: | 16-QFN (3x3) |
