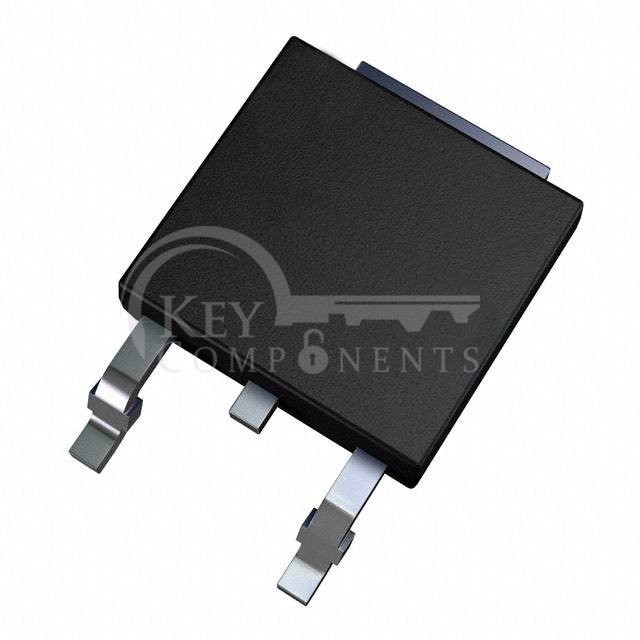

STD70NS04ZL

Manufacturer Part	STD70NS04ZL
Manufacturer	STMicroelectronics
Description	MOSFET N-CH 33V 70A DPAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	33 V
Current - Continuous Drain (Id) @ 25°C:	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	10.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	32 nC @ 5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1800 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	110W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
