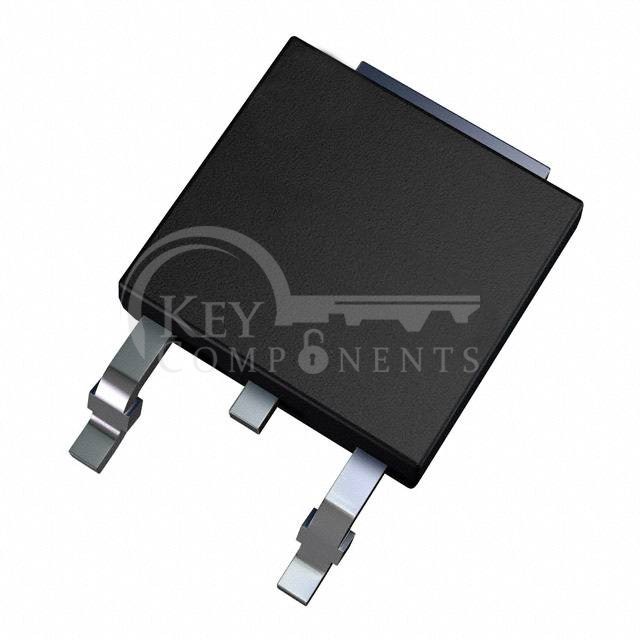

STD15N60M2-EP

Manufacturer Part	STD15N60M2-EP
Manufacturer	STMicroelectronics
Description	MOSFET N-CH 600V 11A DPAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	378mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	17 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	590 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	110W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
