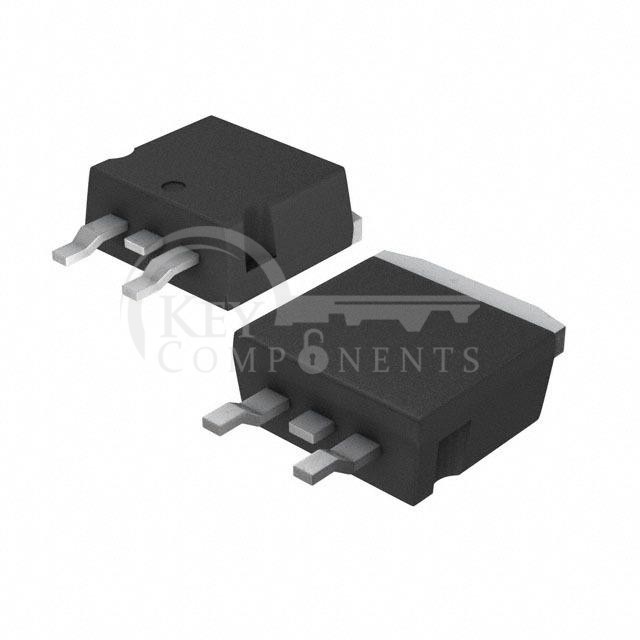

STB7NK80ZT4

Manufacturer Part	STB7NK80ZT4
Manufacturer	STMicroelectronics
Description	MOSFET N-CH 800V 5.2A D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	5.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.8Ohm @ 2.6A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	56 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	1138 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
