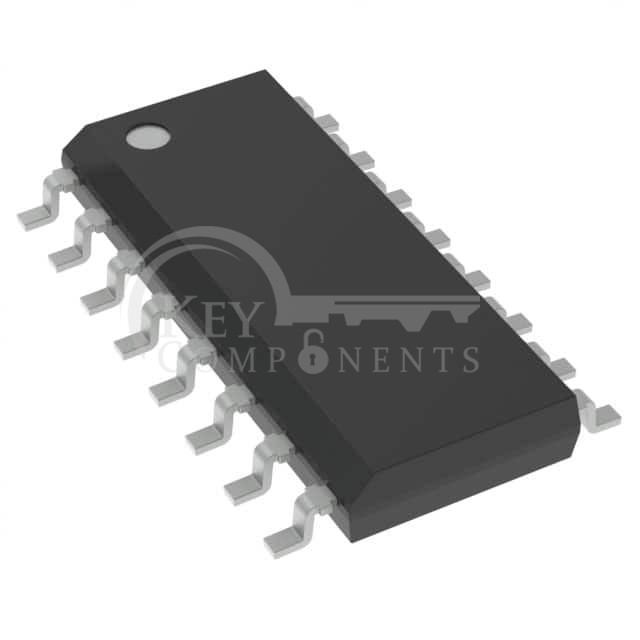

M74HC175RM13TR
| Manufacturer Part | M74HC175RM13TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC FF D-TYPE SNGL 4BIT 16SOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Master Reset |
| Type: | D-Type |
| Output Type: | Complementary |
| Number of Elements: | 1 |
| Number of Bits per Element: | 4 |
| Clock Frequency: | 61 MHz |
| Max Propagation Delay @ V, Max CL: | 26ns @ 6V, 50pF |
| Trigger Type: | Positive Edge |
| Current - Output High, Low: | 5.2mA, 5.2mA |
| Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Iq): | 4 µA |
| Input Capacitance: | 5 pF |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 16-SO |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
