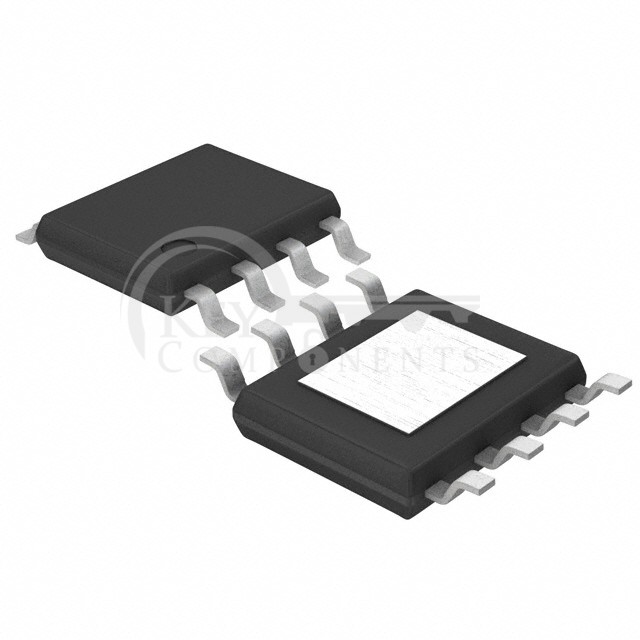

LED5000PHR
| Manufacturer Part | LED5000PHR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC LED DRIVER RGLTR PWM 3A 8HSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 5.5V |
| Voltage - Supply (Max): | 48V |
| Voltage - Output: | - |
| Current - Output / Channel: | 3A |
| Frequency: | 850kHz |
| Dimming: | PWM |
| Applications: | Lighting, Signage |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package: | 8-HSOP |
