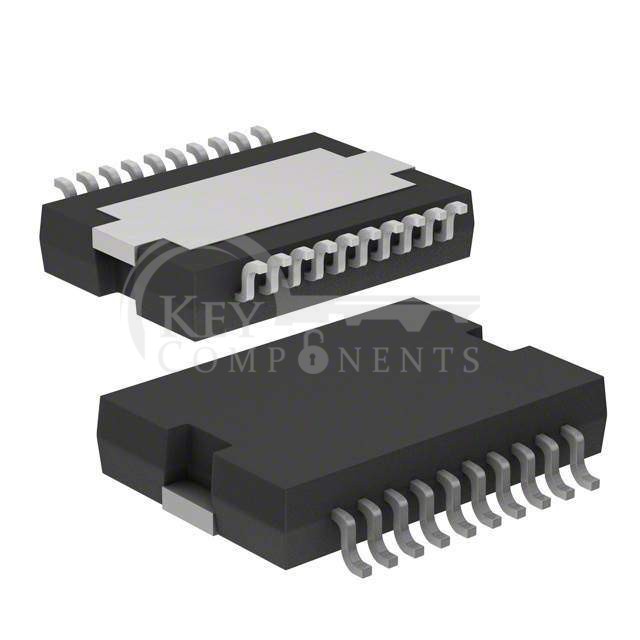

L9935013TR

L9935013TR

Manufacturer Part L9935013TR
Manufacturer STMicroelectronics
Description IC MTR DRV BIPOLAR 8-24V 20PWRSO
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:SPI
Technology:DMOS
Step Resolution:1, 1/2
Applications:General Purpose
Current - Output:1.2A
Voltage - Supply:8V ~ 24V
Voltage - Load:8V ~ 24V
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:PowerSO-20
