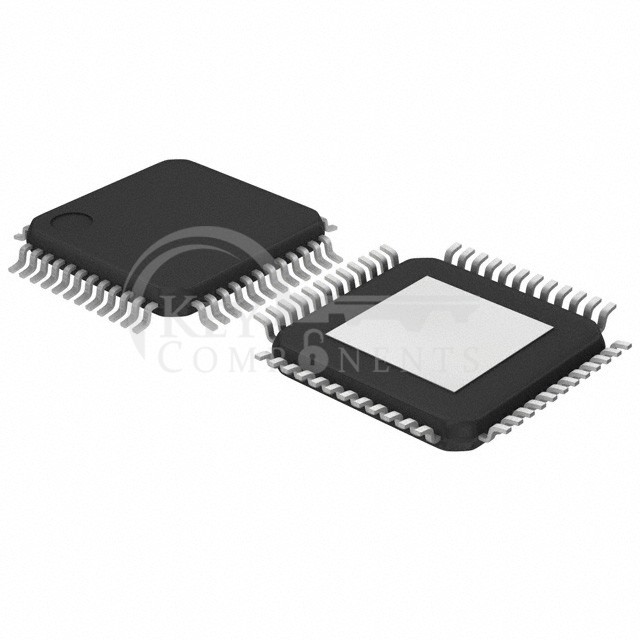

L6711
| Manufacturer Part | L6711 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC REG CTRLR BUCK 48-TQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Type: | Transistor Driver |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 3 |
| Output Phases: | 3 |
| Voltage - Supply (Vcc/Vdd): | 7.5V ~ 15V |
| Frequency - Switching: | 150kHz |
| Duty Cycle (Max): | 80% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Enable, Frequency Control, Phase Control, Soft Start |
| Operating Temperature: | 0°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-TQFP Exposed Pad |
| Supplier Device Package: | 48-TQFP-EP (7x7) |
