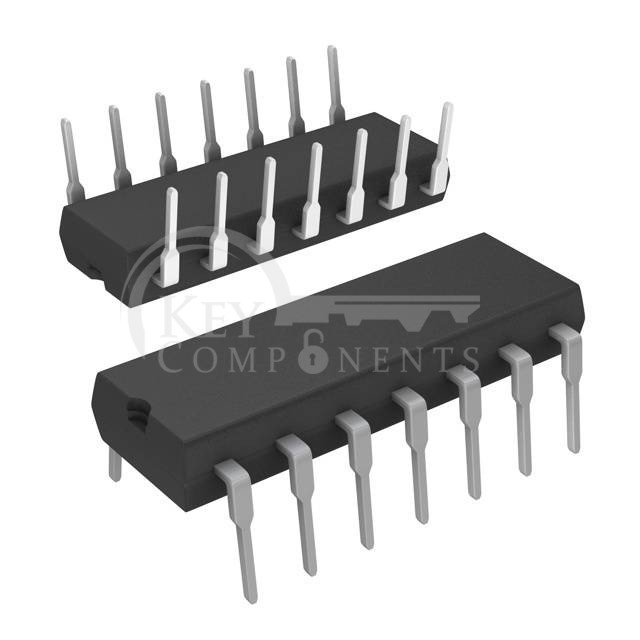

L6386
| Manufacturer Part | L6386 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC GATE DRVR HALF-BRIDGE 14DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Independent |
| Number of Drivers: | 2 |
| Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 17V (Max) |
| Logic Voltage - VIL, VIH: | 1.5V, 3.6V |
| Current - Peak Output (Source, Sink): | 400mA, 650mA |
| Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | 600 V |
| Rise / Fall Time (Typ): | 50ns, 30ns |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 14-DIP |
