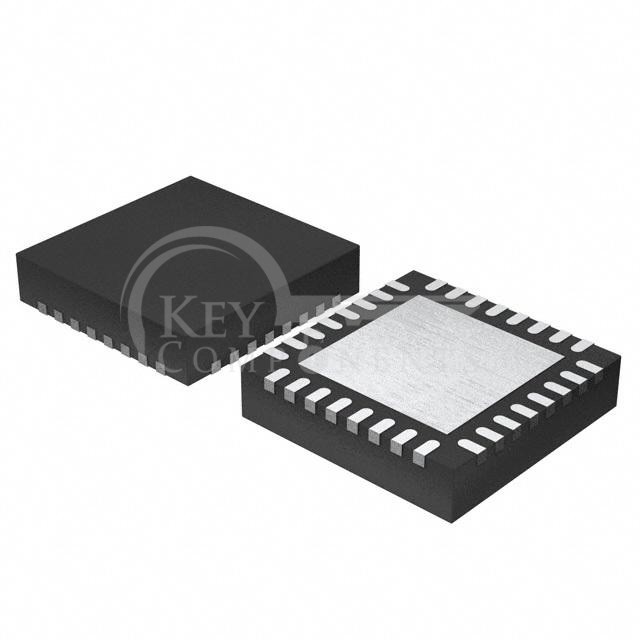

L6228QTR
| Manufacturer Part | L6228QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MOTOR DRV BIPOLAR 8-52V 32FPN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Motor Type - Stepper: | Bipolar |
| Motor Type - AC, DC: | - |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration: | Half Bridge (4) |
| Interface: | Parallel |
| Technology: | DMOS |
| Step Resolution: | 1, 1/2 |
| Applications: | General Purpose |
| Current - Output: | 1.4A |
| Voltage - Supply: | 8V ~ 52V |
| Voltage - Load: | 8V ~ 52V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 32-VFQFN Exposed Pad |
| Supplier Device Package: | 32-VFQFPN-EP (5x5) |
