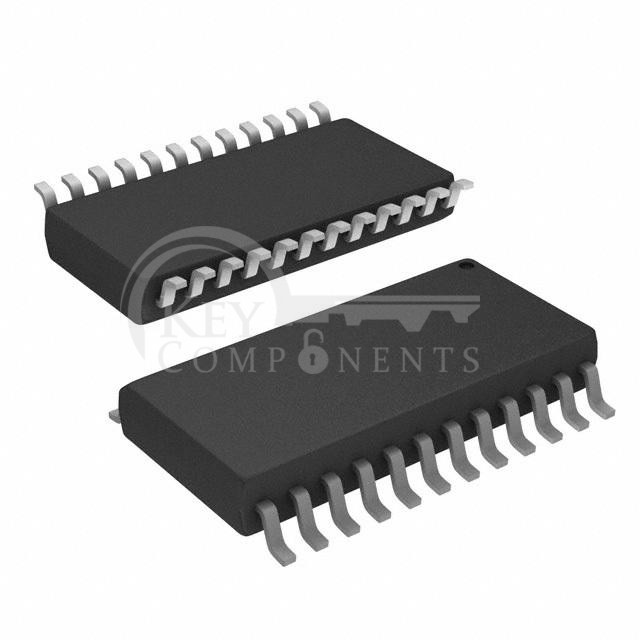

L6206D013TR
| Manufacturer Part | L6206D013TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MOTOR DRIVER PAR 24SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge (4) |
| Applications: | DC Motors, Stepper Motors, Voltage Regulators |
| Interface: | Logic |
| Load Type: | Inductive |
| Technology: | BCDMOS |
| Rds On (Typ): | 300mOhm |
| Current - Output / Channel: | 2.8A |
| Current - Peak Output: | 5.6A |
| Voltage - Supply: | 8V ~ 52V |
| Voltage - Load: | 8V ~ 52V |
| Operating Temperature: | -25°C ~ 125°C (TJ) |
| Features: | Bootstrap Circuit |
| Fault Protection: | Current Limiting, Over Temperature, UVLO |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 24-SO |
