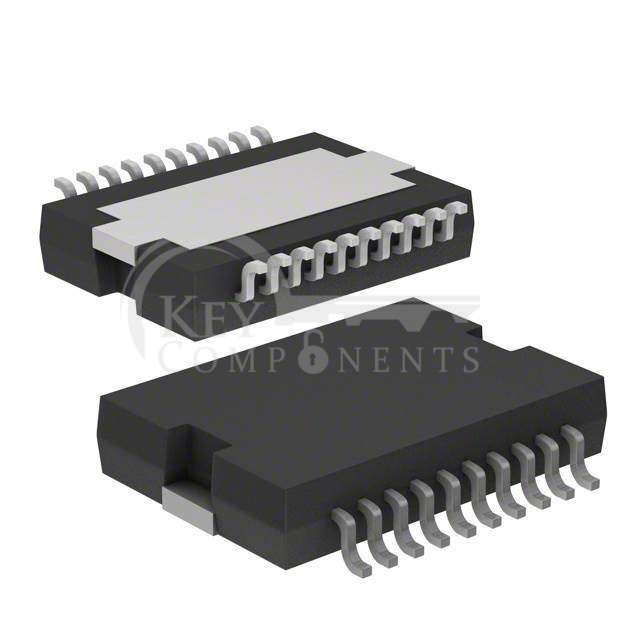

L298P013TR
| Manufacturer Part | L298P013TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC BRIDGE DRIVER PAR 20POWERSO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge (4) |
| Applications: | DC Motors, Relays, Solenoids, Stepper Motors |
| Interface: | Logic |
| Load Type: | Inductive |
| Technology: | Bipolar |
| Rds On (Typ): | - |
| Current - Output / Channel: | - |
| Current - Peak Output: | 2A |
| Voltage - Supply: | 4.5V ~ 7V |
| Voltage - Load: | 4.8V ~ 46V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Features: | - |
| Fault Protection: | Current Limiting, Over Temperature |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package: | PowerSO-20 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
