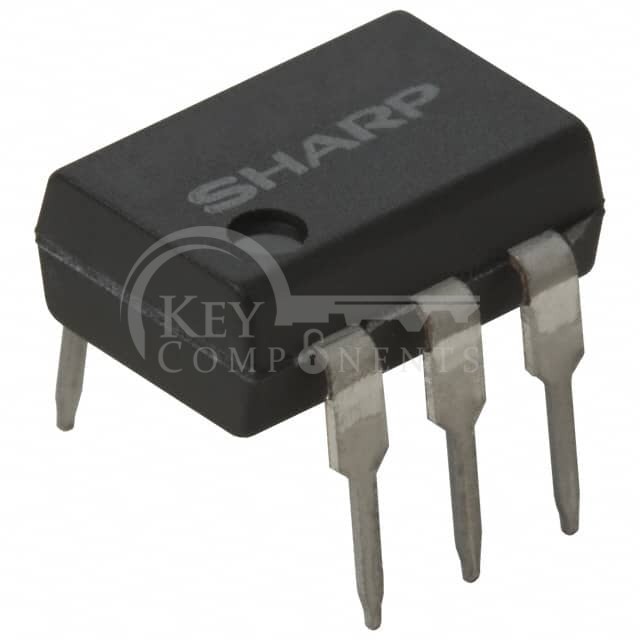

PC2SD11NTZAF
| Manufacturer Part | PC2SD11NTZAF |
|---|---|
| Manufacturer | SHARP/Socle Technology |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Output Type: | Triac |
| Zero Crossing Circuit: | No |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Voltage - Off State: | 400 V |
| Static dV/dt (Min): | 1kV/µs |
| Current - LED Trigger (Ift) (Max): | 10mA |
| Current - On State (It (RMS)) (Max): | 100 mA |
| Current - Hold (Ih): | 3.5mA |
| Turn On Time: | 100µs (Max) |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 50 mA |
| Operating Temperature: | -30°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package: | 6-DIP |
| Approval Agency: | CSA, UR |
