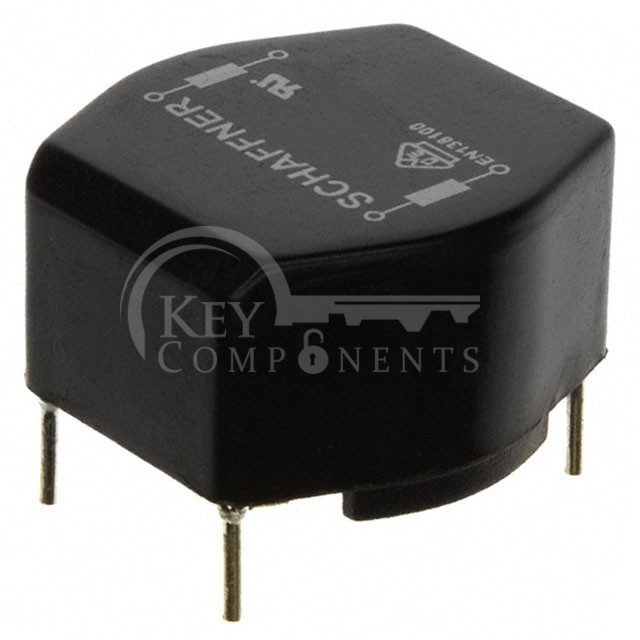

RN114-4-02-1M5
| Manufacturer Part | RN114-4-02-1M5 |
|---|---|
| Manufacturer | Schaffner EMC Inc. |
| Description | CMC 1.5MH 4A 2LN TH |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Filter Type: | Power Line |
| Number of Lines: | 2 |
| Impedance @ Frequency: | - |
| Inductance @ Frequency: | 1.5 mH @ 10 kHz |
| Current Rating (Max): | 4A |
| DC Resistance (DCR) (Max): | 34mOhm (Typ) |
| Voltage Rating - DC: | - |
| Voltage Rating - AC: | 300V |
| Operating Temperature: | -40°C ~ 100°C |
| Ratings: | - |
| Approval Agency: | ENEC, UR, VDE |
| Features: | - |
| Mounting Type: | Through Hole |
| Size / Dimension: | 0.886" L x 0.846" W (22.50mm x 21.50mm) |
| Height (Max): | 0.531" (13.50mm) |
| Package / Case: | Horizontal, 4 PC Pin |
