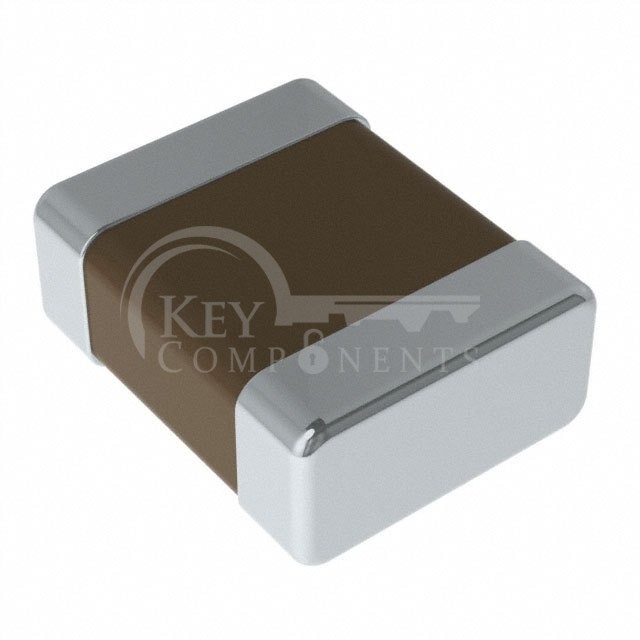

CIG22B2R2MLE
| Manufacturer Part | CIG22B2R2MLE |
|---|---|
| Manufacturer | Samsung Electro-Mechanics |
| Description | FIXED IND 2.2UH 900MA 170MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Multilayer |
| Material - Core: | - |
| Inductance: | 2.2 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 900 mA |
| Current - Saturation (Isat): | 1.3A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 170mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1008 (2520 Metric) |
| Supplier Device Package: | 1008 (2520 Metric) |
| Size / Dimension: | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max): | 0.031" (0.80mm) |
