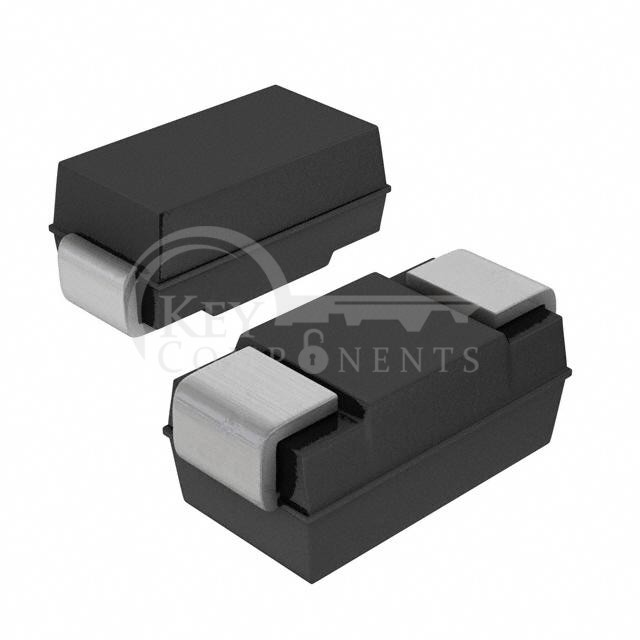

PTZTE2524B
| Manufacturer Part | PTZTE2524B |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | DIODE ZENER 25.3V 1W PMDS |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 25.3 V |
| Tolerance: | ±7% |
| Power - Max: | 1 W |
| Impedance (Max) (Zzt): | 16 Ohms |
| Current - Reverse Leakage @ Vr: | 10 µA @ 19 V |
| Voltage - Forward (Vf) (Max) @ If: | - |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC, SMA |
| Supplier Device Package: | PMDS |
