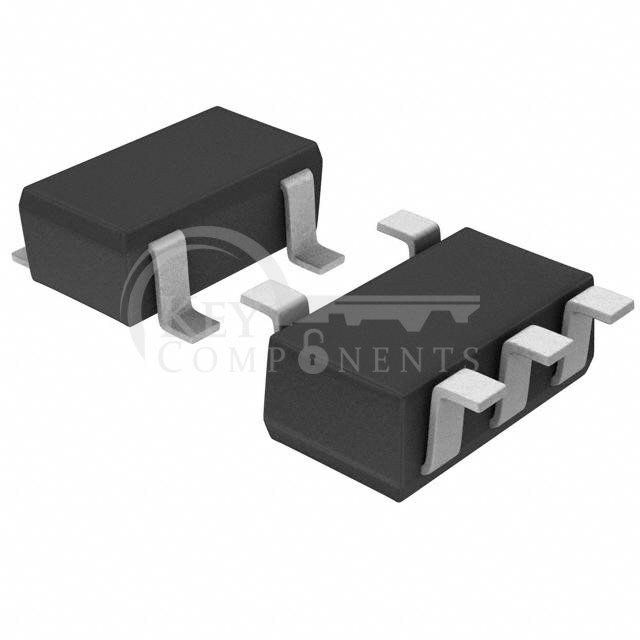

BD2225G-TR
| Manufacturer Part | BD2225G-TR |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | IC PWR SWITCH N-CHAN 1:1 5SSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Type: | USB Switch |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | High Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 550mA |
| Rds On (Typ): | 150mOhm |
| Input Type: | Non-Inverting |
| Features: | Slew Rate Controlled, Status Flag |
| Fault Protection: | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 5-SSOP |
| Package / Case: | SC-74A, SOT-753 |
