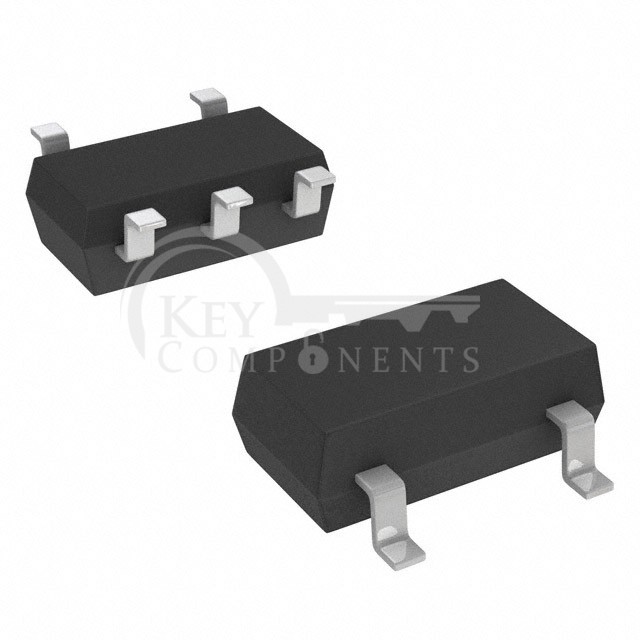

RT9711CGB
| Manufacturer Part | RT9711CGB |
|---|---|
| Manufacturer | Richtek USA Inc. |
| Description | IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Type: | USB Switch |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | High Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 600mA |
| Rds On (Typ): | 80mOhm |
| Input Type: | Non-Inverting |
| Features: | Status Flag |
| Fault Protection: | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SOT-23-5 |
| Package / Case: | SC-74A, SOT-753 |
