RT8555AWSC
| Manufacturer Part | RT8555AWSC |
|---|---|
| Manufacturer | Richtek USA Inc. |
| Description | IC LED DRV RGLTR PWM 20WLCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 6 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 24V |
| Voltage - Output: | 36V |
| Current - Output / Channel: | 35mA |
| Frequency: | 300kHz ~ 2MHz |
| Dimming: | Analog, PWM |
| Applications: | Backlight |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |

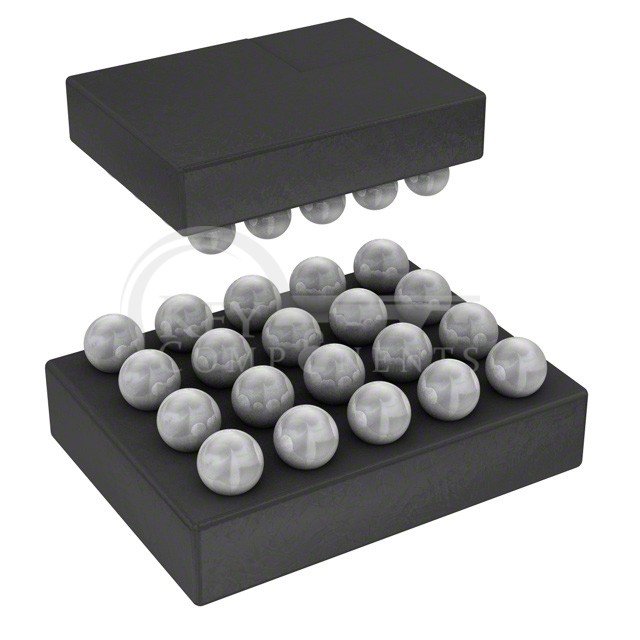

| Package / Case: | 20-UFBGA, WLCSP |
| Supplier Device Package: | 20-WLCSP (1.65x2.05) |
