R7731AGE
| Manufacturer Part | R7731AGE |
|---|---|
| Manufacturer | Richtek USA Inc. |
| Description | IC OFFLINE SW FLYBACK SOT23-6 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Isolated |
| Internal Switch(s): | No |
| Voltage - Breakdown: | - |
| Topology: | Flyback |
| Voltage - Start Up: | 14 V |
| Voltage - Supply (Vcc/Vdd): | 12V ~ 25V |
| Duty Cycle: | 75% |
| Frequency - Switching: | 65kHz |
| Power (Watts): | - |
| Fault Protection: | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |

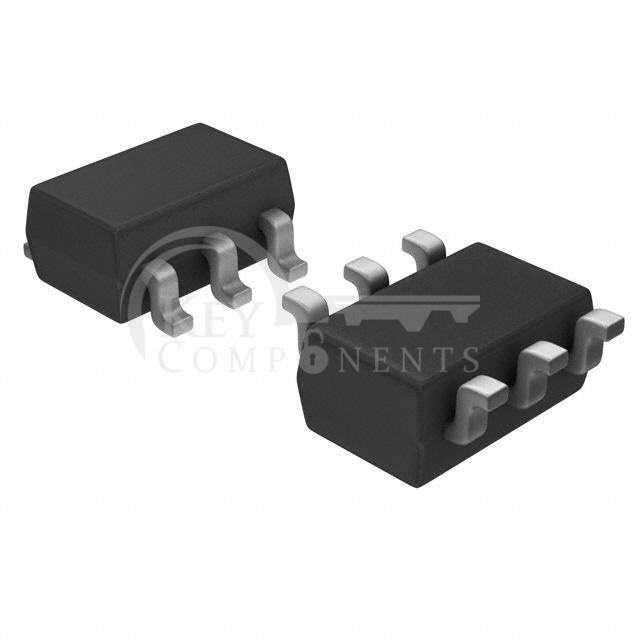

| Package / Case: | SOT-23-6 |
| Supplier Device Package: | SOT-23-6 |
| Mounting Type: | Surface Mount |
