HD64F3694FXV
| Manufacturer Part | HD64F3694FXV |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC MCU 16BIT 32KB FLASH 48LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Core Processor: | H8/300H |
| Core Size: | 16-Bit |
| Speed: | 20MHz |
| Connectivity: | I²C, SCI |
| Peripherals: | PWM, WDT |
| Number of I/O: | 29 |
| Program Memory Size: | 32KB (32K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 2K x 8 |
| Voltage - Supply (Vcc/Vdd): | 3V ~ 5.5V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
| Operating Temperature: | -20°C ~ 75°C (TA) |
| Mounting Type: | Surface Mount |

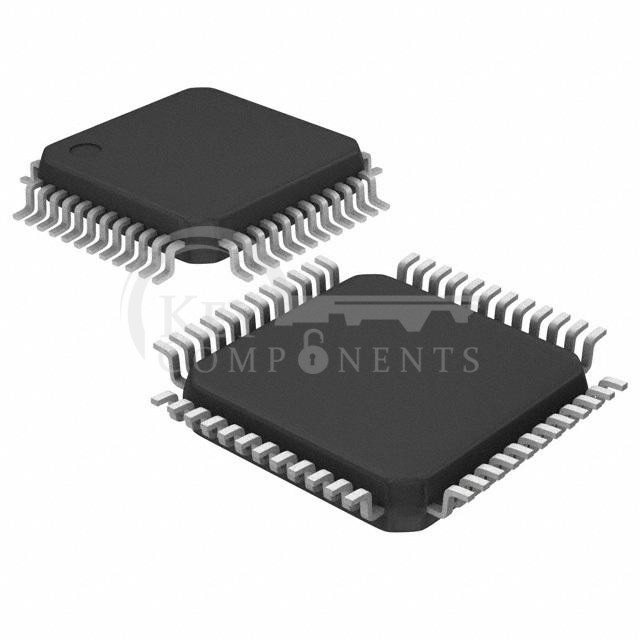

| Package / Case: | 48-LQFP |
| Supplier Device Package: | 48-LQFP (10x10) |
