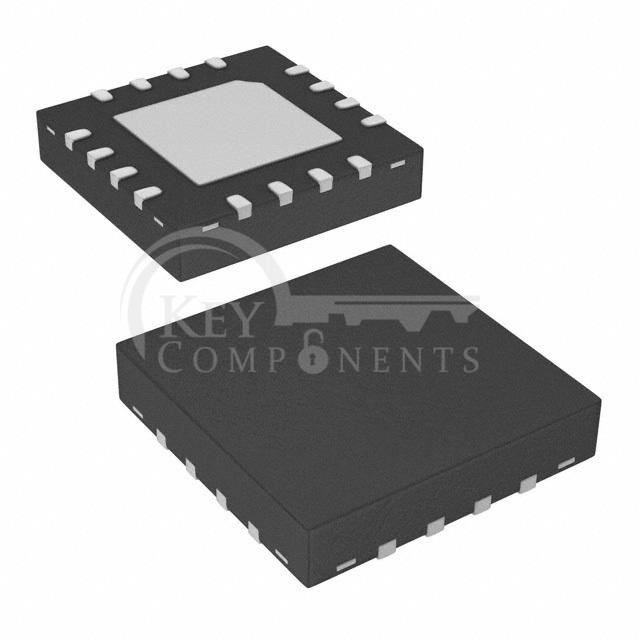

EL5420CL
| Manufacturer Part | EL5420CL |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC VOLTAGE FEEDBACK 4 CIRC 16QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Amplifier Type: | Voltage Feedback |
| Number of Circuits: | 4 |
| Output Type: | Rail-to-Rail |
| Slew Rate: | 10V/µs |
| Gain Bandwidth Product: | 8 MHz |
| -3db Bandwidth: | 12 MHz |
| Current - Input Bias: | 2 nA |
| Voltage - Input Offset: | 2 mV |
| Current - Supply: | 500µA (x4 Channels) |
| Current - Output / Channel: | 30 mA |
| Voltage - Supply Span (Min): | 4.5 V |
| Voltage - Supply Span (Max): | 16.5 V |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-VQFN Exposed Pad |
| Supplier Device Package: | 16-QFN (4x4) |
