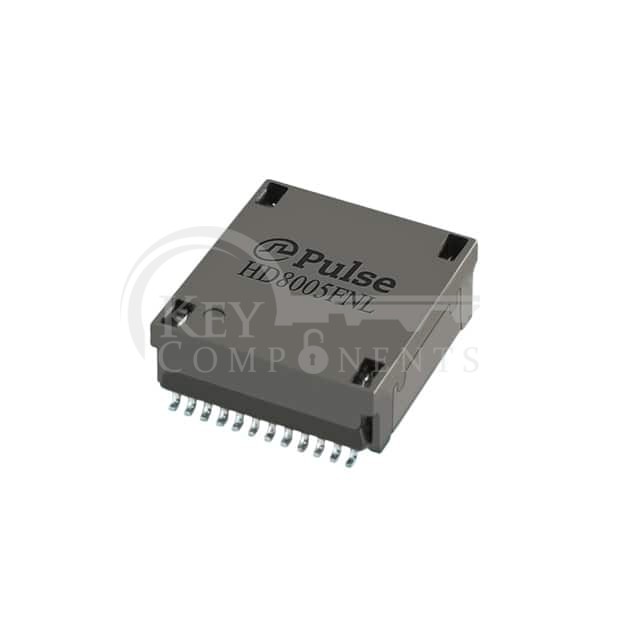

HD8005FNL
| Manufacturer Part | HD8005FNL |
|---|---|
| Manufacturer | Pulse Electronics Network |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Category | Transformers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transformer Type: | HDBase-T |
| Inductance: | 100µH |
| ET (Volt-Time): | - |
| Turns Ratio - Primary:Secondary: | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.539" L x 0.591" W (13.70mm x 15.00mm) |
| Height - Seated (Max): | 0.225" (5.72mm) |
| Operating Temperature: | 0°C ~ 70°C |
