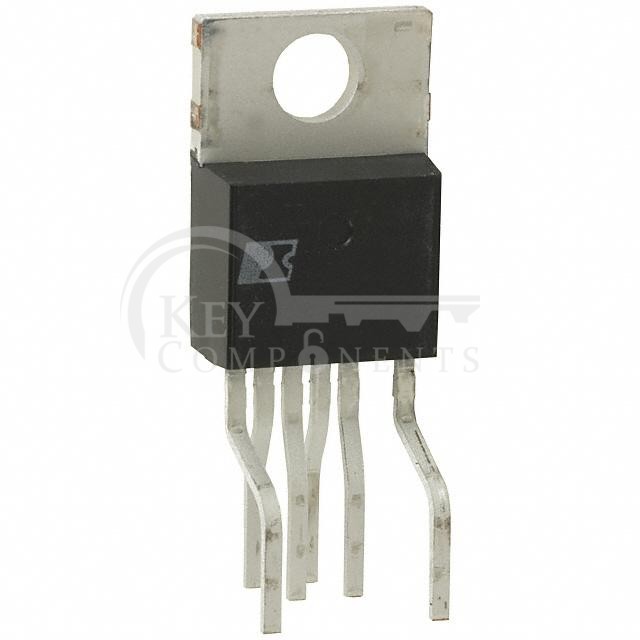

TOP245Y

TOP245Y

Manufacturer Part TOP245Y
Manufacturer Power Integrations
Description IC OFFLINE SW FLYBACK TO220-7C
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:700V
Topology:Flyback
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:66.5%
Frequency - Switching:66kHz ~ 132kHz
Power (Watts):85 W
Fault Protection:Current Limiting, Over Temperature, Over Voltage
Control Features:Frequency Control
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:TO-220-7 Formed Leads, 6 Leads
Supplier Device Package:TO-220-7C
Mounting Type:Through Hole
