LNK614DG
| Manufacturer Part | LNK614DG |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC OFFLINE SWITCH FLYBACK 8SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Output Isolation: | Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 700V |
| Topology: | Flyback |
| Voltage - Start Up: | - |
| Voltage - Supply (Vcc/Vdd): | - |
| Duty Cycle: | 55% |
| Frequency - Switching: | Up to 85kHz |
| Power (Watts): | 4.1 W |
| Fault Protection: | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |

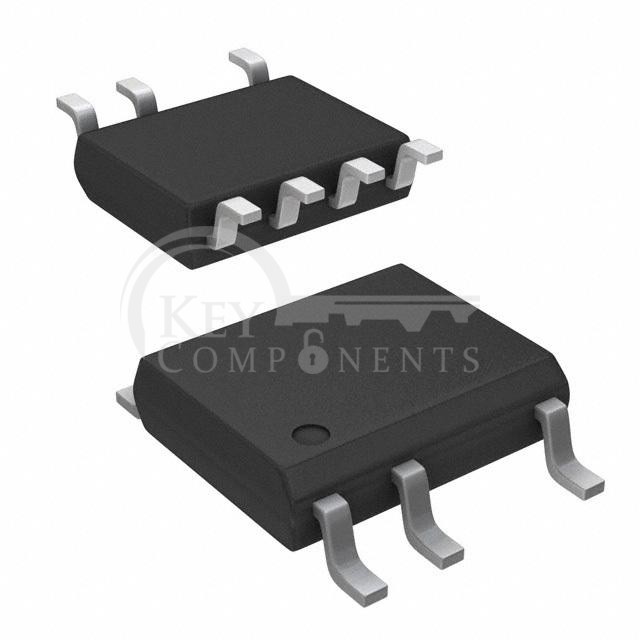

| Package / Case: | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package: | SO-8C |
| Mounting Type: | Surface Mount |
