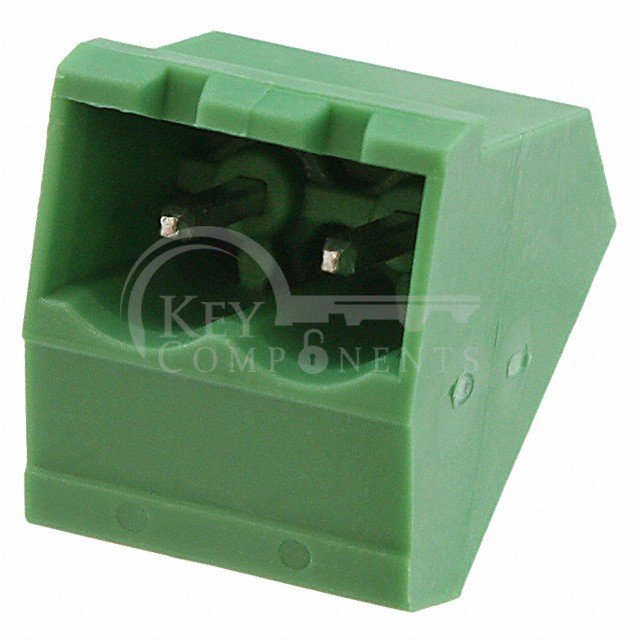

1767371
| Manufacturer Part | 1767371 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 2POS 45DEG 5.08MM |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions: | 2 |
| Positions Per Level: | 2 |
| Number of Levels: | 1 |
| Pitch: | 0.200" (5.08mm) |
| Header Orientation: | 45° |
| Plug Wire Entry: | - |
| Termination Style: | Solder |
| Mounting Type: | Through Hole |
| Current - IEC: | 12A |
| Voltage - IEC: | 630 V |
| Current - UL: | 15 A |
| Voltage - UL: | 300 V |
| Wire Gauge or Range - AWG: | - |
| Wire Gauge or Range - mm²: | - |
| Color: | Green |
| Operating Temperature: | - |
| Contact Mating Finish: | Tin |
| Features: | - |
